Stuff You Should be Able to Make Yourself

Posted: May 17, 2017 by gamegetterII in Uncategorized

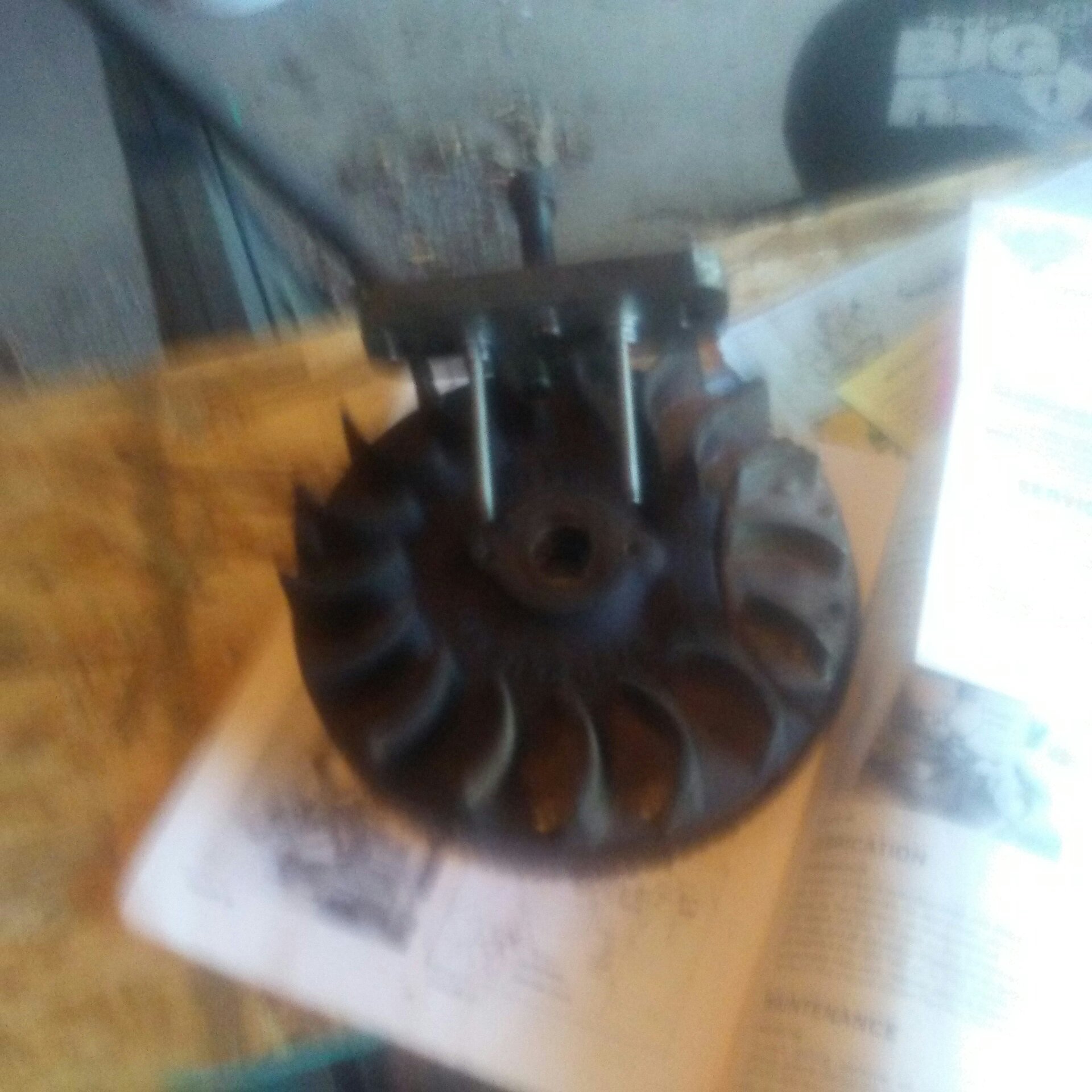

The picture shows the flywheel off an old 8hp Briggs and Stratton engine.

The piece of steel with the big bolt in center and two smaller long bolts is the flywheel puller I made in about a half hour- 45 minutes.

I originally made the puller for pulling a hub and bearing off an old tractor.

I just took the piece of steel and drilled and tapped center hole for big bolt- that’s what applies force to shaft. The original outer two holes were for pulling hub and bearing off tractor axle shaft.

To make it into flywheel puller I only had to drill two new holes and use two long 1/4-20 bolts with stop nuts. The bolts threaded into the two holes in flywheel.
Used a ratchet with correct socket for bolt and after threading two long bolts into tapped holes in flywheel, kept tightening bolt until flywheel popped loose.

This is the kind of stuff you need to be able to figure out and make in your garage/ shop.

If you ain’t mechanically inclined- get someone in your group who is.

This puller was easy to make and the only specialized tool was the tap.

I have thousands of nuts, bolts, washers and lots of pieces of angle iron, round stock steel, sheet steel and bar stock steel.

I save stuff like that for times like when I needed to make pullers for various reasons, and for when I need to make repairs on equipment or vehicles.

Helps to have a welder and cutting torches.

For this little project I only needed a cut off wheel on angle grinder to cut thick chunk of steel, drill press with right sized bits, and I used bench grinder to round off sharp edges, plus the tap and oil for drill bits and tap.
